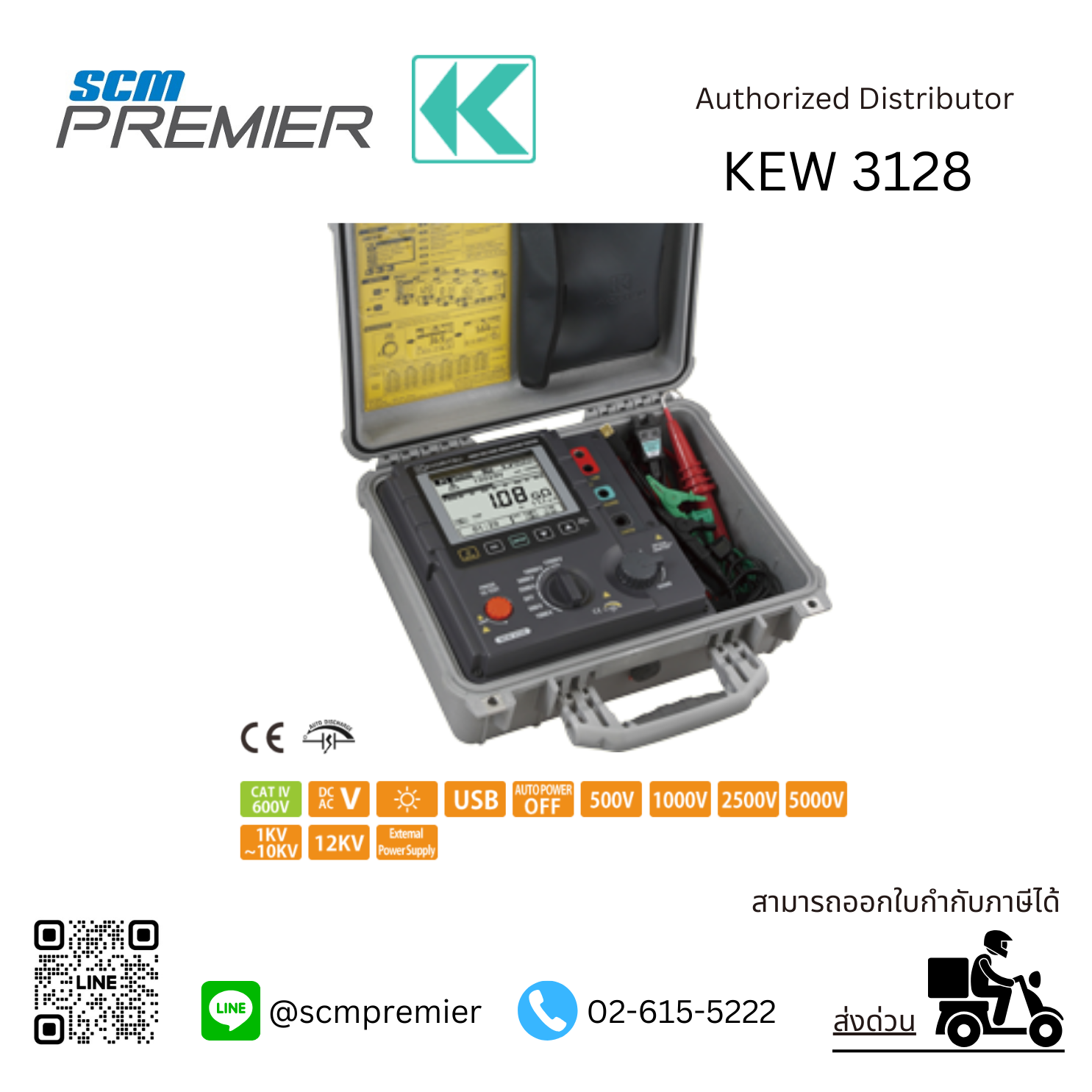

Kyoritsu High Voltage Insulation Tester KEW 3128
เคียวริทสึ เครื่องทดสอบฉนวนไฟฟ้าแรงสูง
คุณสมบัติ
- แรงดันทดสอบ 12kV (สูงสุด) ความต้านทาน 35TΩ (สูงสุด )
- ค่ากระแสไฟฟ้าที่วัด ได้เมื่อลัดวงจร 5mA (สูงสุด )
- ความต้านทานฉนวนและกระแสไฟรั่วแสดงเป็นภาพกราฟิก โดยเปรียบเทียบกับเวลาที่แสดงบนจอภาพขนาดใหญ่ พร้อมกราฟแท่งและไฟแบ็คไลท์
- ฟังก์ชันพิมพ์หน้าจอ (Print Screen) ช่วยให้บันทึกหน้าจอภาพได้สูงสุดถึง 32 หน้า
- หน่วยความจำ ภายในเก็บข้อมูลได้มากถึง 43,000 ข้อมูล (สูงสุด)
- ใช้พลังงานจากแบตเตอรี่แบบชาร์จไฟที่ติดตั้งอยู่ในตัวเครื่อง หรือจะต่อจากสายไฟ AC ก็ได้
- ออกแบบให้มีรูปลักษณ์แข็งแกร่ง
- อุปกรณ์ภายในกล่อง
- Kyoritsu High Voltage Insulation Tester รุ่น KEW 3128
- 7170 (Main cord),
- 7224A (Earth cord),
- 7225A (Guard cord),
- 7226A (Line probe),
- 7227A (Line probe with alligator clip),
- 8029 (Extension prod),
- 8212-USB-W (USB adaptor with KEW Windows (Software)),
- Instruction manual
สินค้ารับประกันจากผู้ผลิต 3 ปี (ปีที่ 2-3 ฟรีค่าแรง)
General
Applicable standards | IEC 61010-1 CAT IV 600V Pollution degree 2, IEC 61010-2-034, IEC 61010-031, IEC 61326, IEC 60529 (IP64): with the lid closed. |
---|---|
Operating temperature and humidity range | -10ºC – Relative humidity 85% or less 50ºC /(when operating with an external power supply, no condensation) 0ºC – 40ºC /Relative humidity 85% or less (when operating with battery, no condensation) |
Storage temperature and humidity range | -20ºC – 60ºC / Relative humidity 75% or less (no condensation) |
Power source | Rechargeable Lead storage battery (12V)* Charging time: approx. 8 hours / AC Power supply (100V – 240V, 50/60Hz) * Continuous measuring time: Approx. 4 hours (a load of 100MΩ at the Insulation resistance 12000V Range.) Approx. 2 hours (Max current consumption in range while rated currents are maintained.) |
Dimension | 330 (L) × 410 (W) × 180 (D) mm *Instrument and Hard case |
Weight | Approx. 9kg (including battery) *Instrument and Hard case |
Accessories | 7170(Power cord[EU]) or 7240(Power cord[UK]) 7224A (Earth cord) 7225A (Guard cord) 7226A (Line probe) 7227A (Line probe with alligator clip) 8029 (Extension prod) 8212-USB-W (USB adapter with KEW Windows (Software)) Instruction manual |
Optional Accessories | 7254 (Longer Line probe with alligator clip) |
Kyoritsu High Voltage Insulation Tester KEW 3128
- Test Voltage 12kV (max), Resistance 35TΩ (max)
- Short-Circuit Current 5mA (max)
- Graphic representation of the insulation resistance and leakage current versus time on large display with bar graph and backlight
- Print Screen Function enables to record up to 32 display screens
- Internal Memory can store about 43,000 data (max)
- Can be operated from internal rechargeable battery or from AC line
- Robust design for field use with IP64 rating (with lid closed)
