KYORITSU 2200R

Name: KYORITSU 2200R
SKU: 049989
Price: 3600.00 THB
Availability: InStock

฿3,600.00 ex. Vat

ดิจิตอลแคล้มป์มิเตอร์ KYORITSU Digital Clamp Meter รุ่น KEW 2200

10 in stock

Compare

SKU: 049989 Categories: AC Digital Clamp, Clamp Meter, Electrical

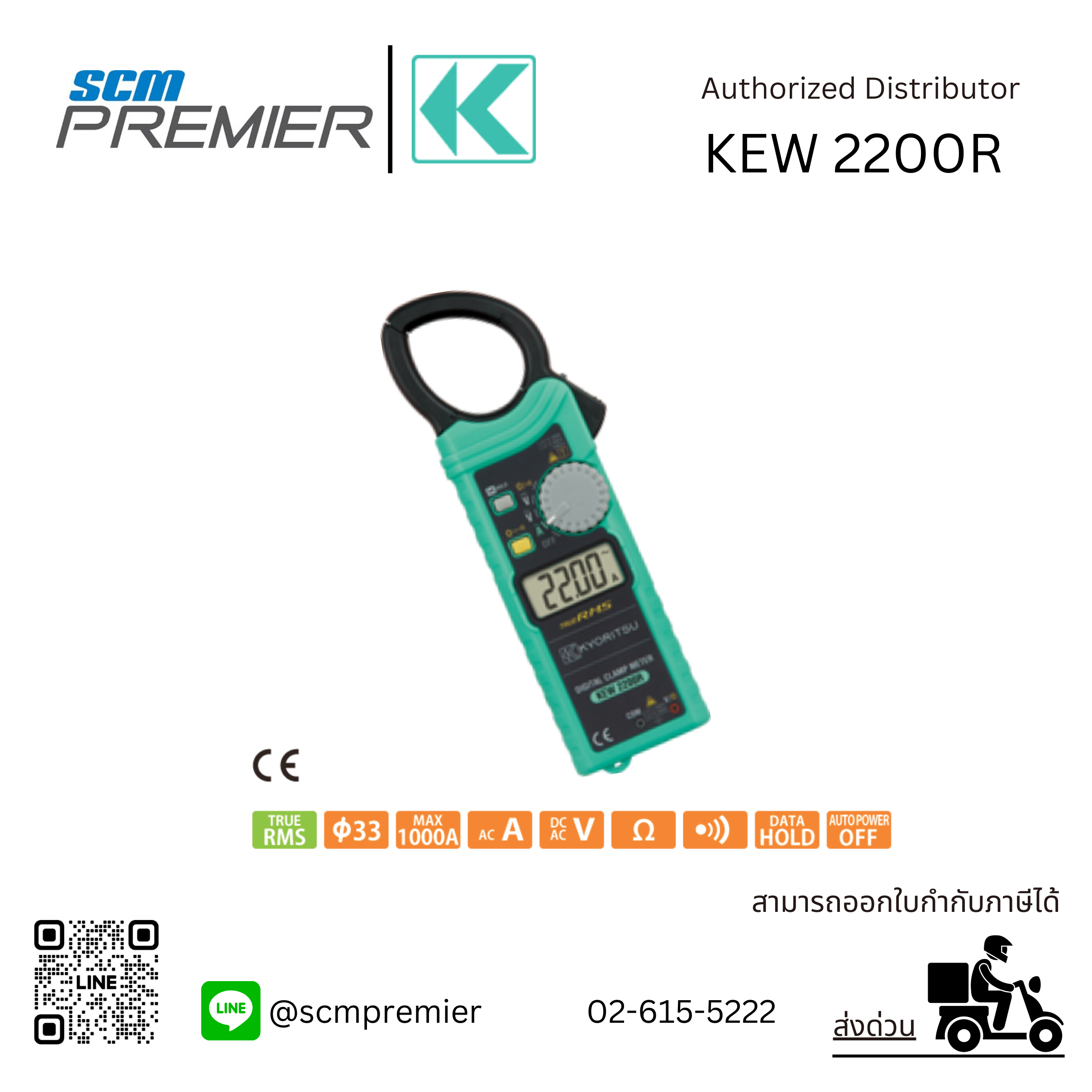

ดิจิตอล แคล้มป์มิเตอร์ KYORITSU Digital Clamp Meter รุ่น KEW 2200R

อุปกรณ์ภายในกล่อง

สินค้ารับประกันจากผู้ผลิต 3 ปี (ปีที่ 2-3 ฟรีค่าแรง)

Weight	0.12 kg
Dimensions	19.0 × 6.8 × 2.0 cm
Measuring AC Current	40.00/400.0/1000A (Auto-ranging)
Measuring AC Current Accuracy	±1.5%rdg±5dgt (45 – 65Hz), ±2.0%rdg±5dgt [40 – 1kHz]
Measuring AC Voltage	4.000/40.00/400.0/600V (Auto-ranging)
Measuring AC Voltage Accuracy	±1.8%rdg±7dgt (45 – 65Hz), ±2.3%rdg±8dgt (65 – 500Hz)
Measuring DC Voltage	400.0mV/4.000/40.00/400.0/600V (Auto-ranging)
Measuring DC Voltage Accuracy	±1.0%rdg±3dgt (400mV range is excluded.)
Measuring Resistance	400.0Ω/4.000/40.00/400.0kΩ/4.000/40.00MΩ (Auto-ranging)
Measuring Resistance Accuracy	±2.0%rdg±4dgt (0 – 400kΩ), ±4.0%rdg±4dgt (4MΩ), ±8.0%rdg±4dgt (40MΩ)
Continuity Buzzer	buzzer sounds below 50±30Ω
Conductor Size	φ33mm max
Applicable Standards	CAT II 600V, CAT III 300V(ACA), CAT III 600V, CAT IV 300V, EN 50581(RoHS), IEC 61010-031, IEC 61010-1, IEC 61010-2-032, IEC 61326 (EMC), Pollution degree 2
Power Source	Battery AAA x 2
Battery Runtime	approx. 120 hours (Auto power off: approx. 10 minutes)
Accessories	7107A (Test leads), 9160 (Carrying case), Instruction manual, R03(AAA) × 2
