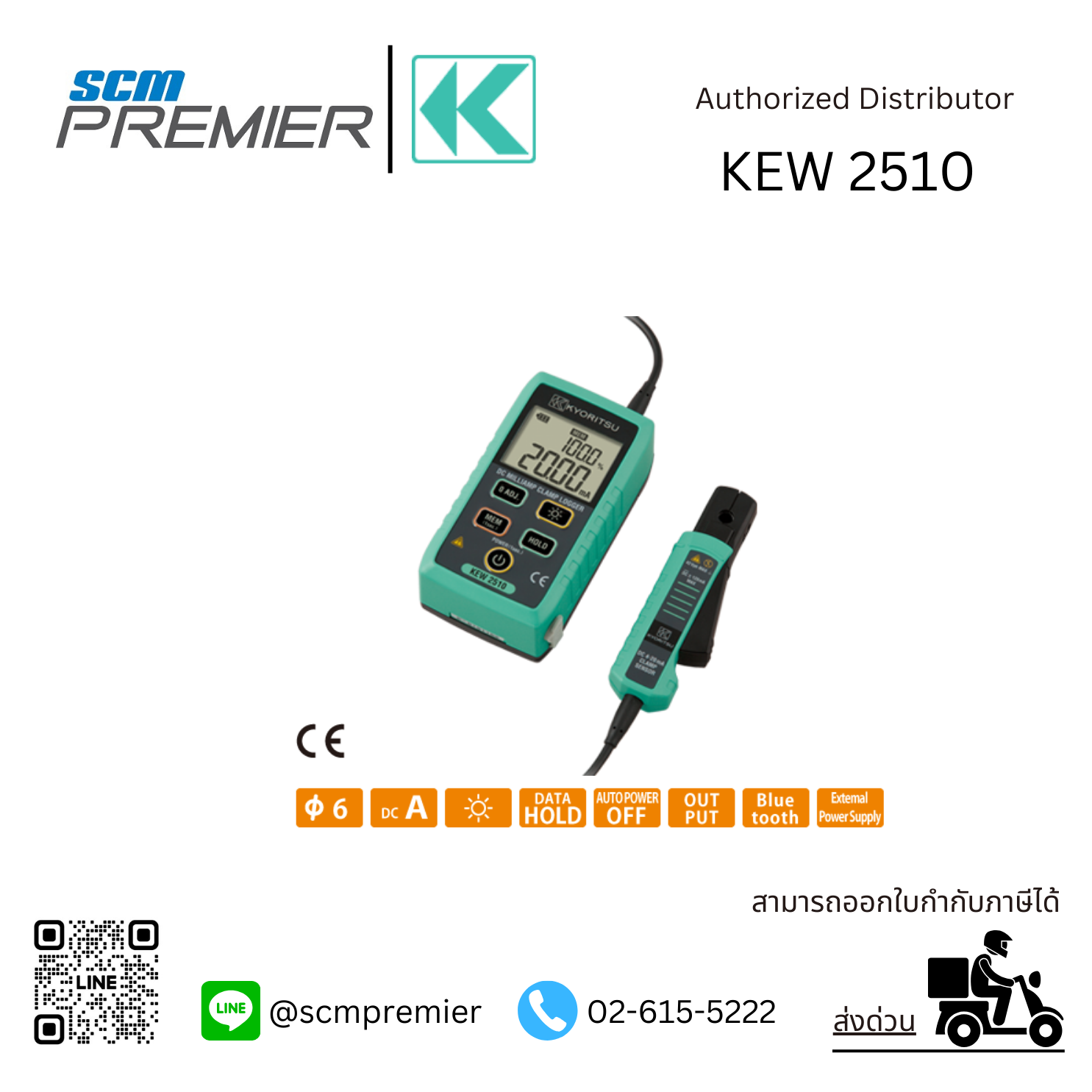

KYORITSU KEW 2510

Name: KYORITSU KEW 2510
SKU: 050734
Price: 28000.00 THB
Availability: InStock

฿28,000.00 ex. Vat

ดิจิตอล มิลลิแอมป์ แคล้มป์มิเตอร์ KYORITSU DC Milliamp Clamp Meter รุ่น KEW 2510

Only 1 left in stock

Compare

SKU: 050734 Categories: Clamp Meter, DC Milliamp Clamp, Electrical

อุปกรณ์ภายในกล่อง

สินค้ารับประกันจากผู้ผลิต 3 ปี (ปีที่ 2-3 ฟรีค่าแรง)

Weight	0.3 kg
Dimensions	12.0 × 7.0 × 5.0 cm
Measuring AC Current	40.00/400.0/1000A (Auto-ranging)
Measuring AC Current Accuracy	±1.4%rdg±6dgt (50/60Hz), ±1.6%rdg±6dgt (45 – 65Hz)
Measuring AC Voltage	4.000/40.00/400.0/600V (Auto-ranging)
Measuring AC Voltage Accuracy	±1.8%rdg±7dgt (45 – 65Hz), ±2.3%rdg±8dgt (65 – 500Hz)
Measuring DC Voltage	400.0mV/4.000/40.00/400.0/600V (Auto-ranging)
Measuring DC Voltage Accuracy	±1.0%rdg±3dgt (400mV range is excluded.)
Measuring Resistance	400.0Ω/4.000/40.00/400.0kΩ/4.000/40.00MΩ (Auto-ranging)
Measuring Resistance Accuracy	±2.0%rdg±4dgt (0 – 400kΩ), ±4.0%rdg±4dgt (4MΩ), ±8.0%rdg±4dgt (40MΩ)
Continuity Buzzer	buzzer sounds below 50±30Ω
Conductor Size	φ33mm max
Applicable Standards	CAT III 300V(ACA), CAT III 600V, IEC 61010-031, IEC 61010-1, IEC 61010-2-032, IEC 61326 (EMC), Pollution degree 2
Power Source	Battery AAA x 2
Battery Runtime	approx. 350 hours (Auto power off: approx. 10 minutes)
Accessories	7107A (Test leads), 9160 (Carrying case), Instruction manual, R03(AAA) × 2
