KYORITSU KEW 2127R

Name: KYORITSU KEW 2127R
SKU: 050148
Price: 4000.00 THB
Availability: OutOfStock

฿4,000.00 ex. Vat

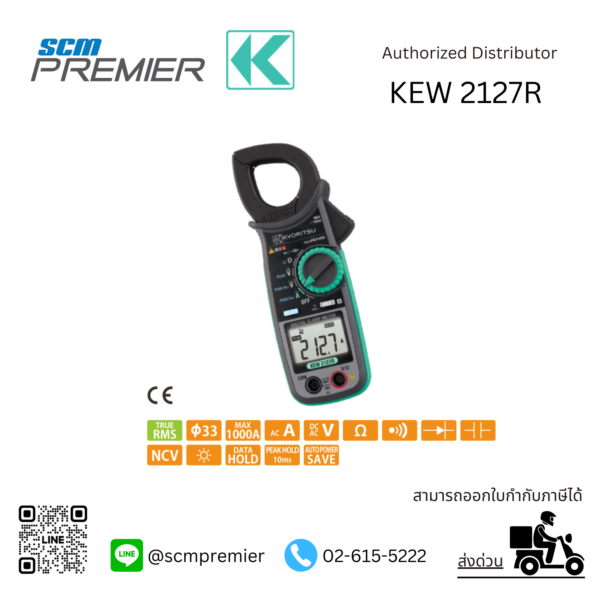

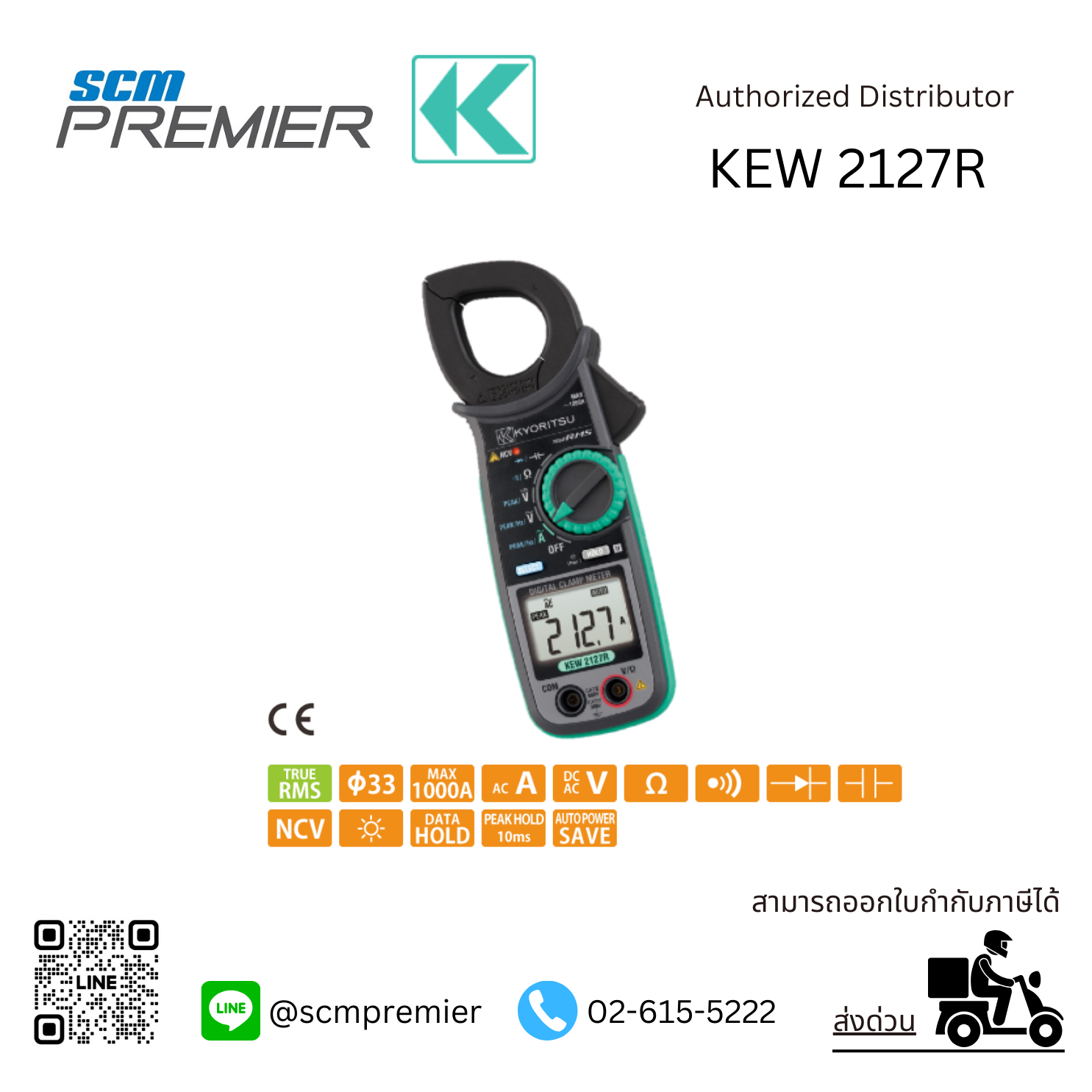

ดิจิตอล แคล้มป์มิเตอร์ KYORITSU Digital Clamp Meter รุ่น KEW 2127R

Out of stock

SKU: 050148 Categories: AC Digital Clamp, Clamp Meter, Electrical

ดิจิตอล แคล้มป์มิเตอร์ KYORITSU Digital Clamp Meter รุ่น KEW 2127R

อุปกรณ์ภายในกล่อง
– Digital Clamp Meter รุ่น KEW 2127R
– 7066A (Test leads)
– 9079 (Carrying case)
– Battery AAA x 2 ก้อน
– คู่มือการใช้งาน

สินค้ารับประกันจากผู้ผลิต 3 ปี (ปีที่ 2-3 ฟรีค่าแรง)

Weight	0.23 kg
Dimensions	20.4 × 8.1 × 3.6 cm
Measuring AC Current	60.00/600.0/1000A (Auto-ranging)
Measuring AC Current Accuracy	±1.5%rdg±4dgt [45 – 65Hz], ±2.0%rdg±5dgt [40 – 1kHz]
Measuring AC Voltage	60.00/600.0V (Auto-ranging)
Measuring AC Voltage Accuracy	±1.0%rdg±2dgt [45 – 65Hz] (600V), ±1.5%rdg±4dgt [40 – 1kHz] (60/600V)
Measuring DC Voltage	60.00/600.0V (Auto-ranging)
Measuring DC Voltage Accuracy	±1.0%rdg±3dgt (60V), ±1.2%rdg±3dgt (600V)
Measuring Resistance	600.0Ω/6.000/60.00/600.0kΩ/6.000/40.00MΩ (Auto-ranging)
Measuring Resistance Accuracy	±1.0%rdg±5dgt (600Ω), ±2.0%rdg±3dgt (6/60/600kΩ), ±3.0%rdg±3dgt (6MΩ), ±5.0%rdg±3dgt (40MΩ)
Continuity Buzzer	600Ω (Buzzer sounds below 90Ω)
Measuring Capacitance	1.000/10.00/100.0μF
Measuring Capacitance Accuracy	±3.0%rdg±10dgt (10/100μF), ±3.0%rdg±15dgt (1μF)
Measuring Diode	2.000V ±4%rdg±5dgt Open-circuit voltage:<3.5V
Measuring Frequency	999.9Hz/9.999kHz (Auto-ranging) ±0.1%rdg±3dgt
Conductor Size	φ33mm max
Applicable Standards	CAT IV 600V, EN 50581(RoHS), IEC 60529 IP40, IEC 61010-031, IEC 61010-2-032, IEC 61010-2-033, IEC 61326-2-2(EMC), Pollution degree 2
Power Source	Battery AAA x 2
Battery Runtime	Approx. 170 hours
Accessories	7066A (Test leads), 9079 (Carrying case), Instruction manual, R03(AAA) × 2
