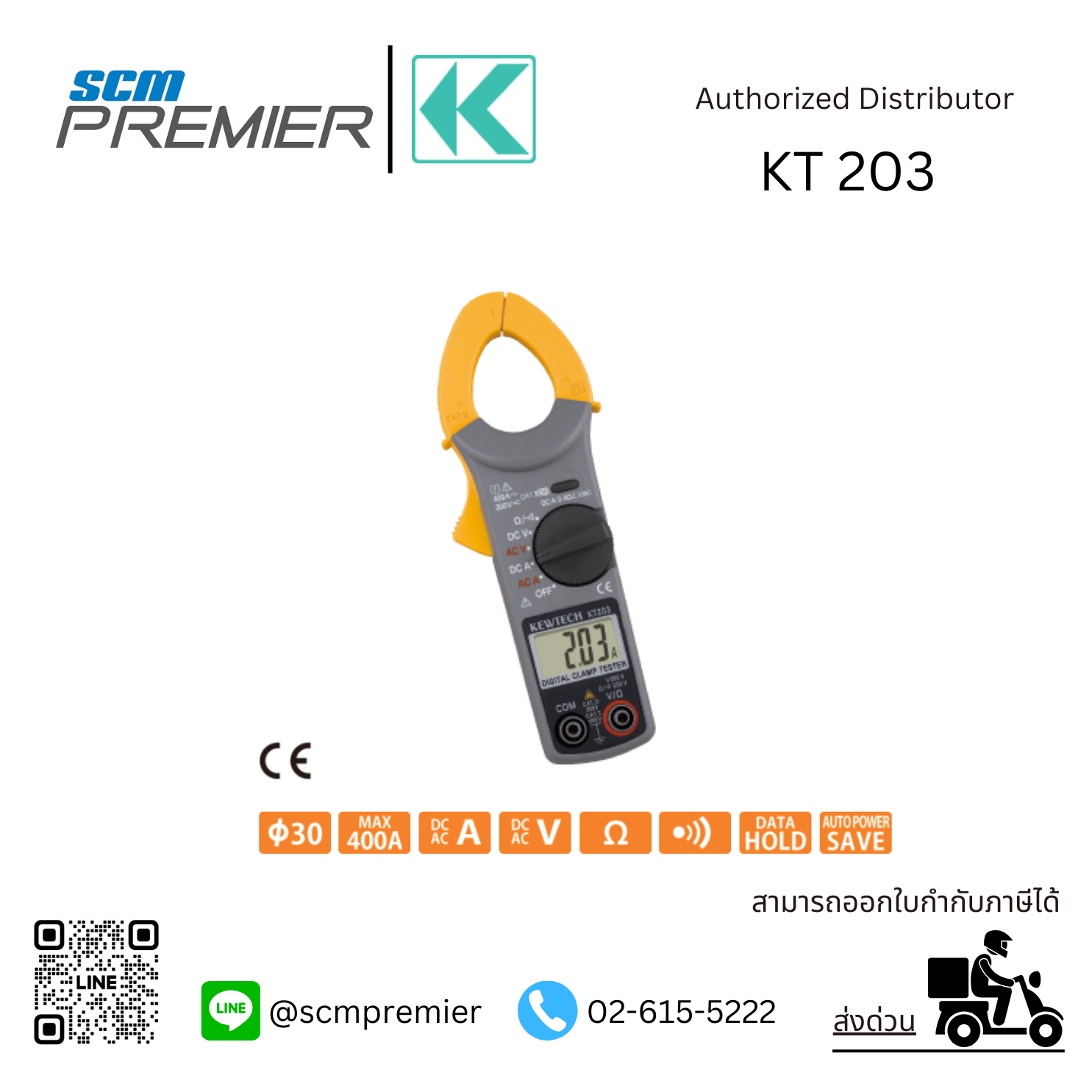

KYORITSU KEW SNAP 203

Name: KYORITSU KEW SNAP 203
SKU: 000123
Availability: InStock

฿3,200.00 ex. Vat

ดิจิตอลแคล้มป์มิเตอร์ KYORITSU Digital Clamp Meter รุ่น KT203

In stock

Compare

SKU: 000123 Categories: AC/DC Clamp, Clamp Meter, Electrical

ดิจิตอล แคล้มป์มิเตอร์ KYORITSU Digital Clamp Meter รุ่น KT 203

อุปกรณ์ภายในกล่อง

สินค้ารับประกันจากผู้ผลิต 3 ปี (ปีที่ 2-3 ฟรีค่าแรง)

Weight	0.20 kg
Dimensions	18.7 × 6.85 × 3.85 cm
Measuring AC Current	40.00/400.0A
Measuring AC Current Accuracy	±3.0%rdg±8dgt(50/60Hz) (0-40A), ±3.5%rdg±6dgt(50/60Hz) (15.0-299.9A), ±4.0%rdg±6dgt(50/60Hz) (300-400A)
Measuring DC Current	40.00/400.0A (Auto-ranging)
Measuring DC Current Accuracy	±3.0%rdg±8dgt (0 – 40.00A), ±3.5%rdg±6dgt (15.0 – 299.9A), ±4.0%rdg±6dgt (300.0 – 400.0A)
Measuring AC Voltage	400.0/600V(Auto-ranging)
Measuring AC Voltage Accuracy	±2.0%rdg±5dgt(50/60Hz)
Measuring DC Voltage	400.0/600V(Auto-ranging)
Measuring DC Voltage Accuracy	±1.5%rdg±5dgt
Measuring Resistance	400.0/4000Ω(Auto-ranging)
Measuring Resistance Accuracy	±2.0%rdg±5dgt
Continuity Buzzer	buzzer sounds below 50±35Ω
Conductor Size	φ30mm max.
Applicable Standards	CAT II 600V, CAT III 300V(ACA), IEC 61010-1, IEC 61010-2-032, IEC 61326-1, Pollution degree 2
Power Source	Battery AAA x 2
Battery Runtime	Approx. 35 hours (Auto power save: approx. 10 minutes)
Accessories	7066A (Test leads), Instruction manual, R03(AAA) × 2
Optional Accessories	9105 (Carrying case)
