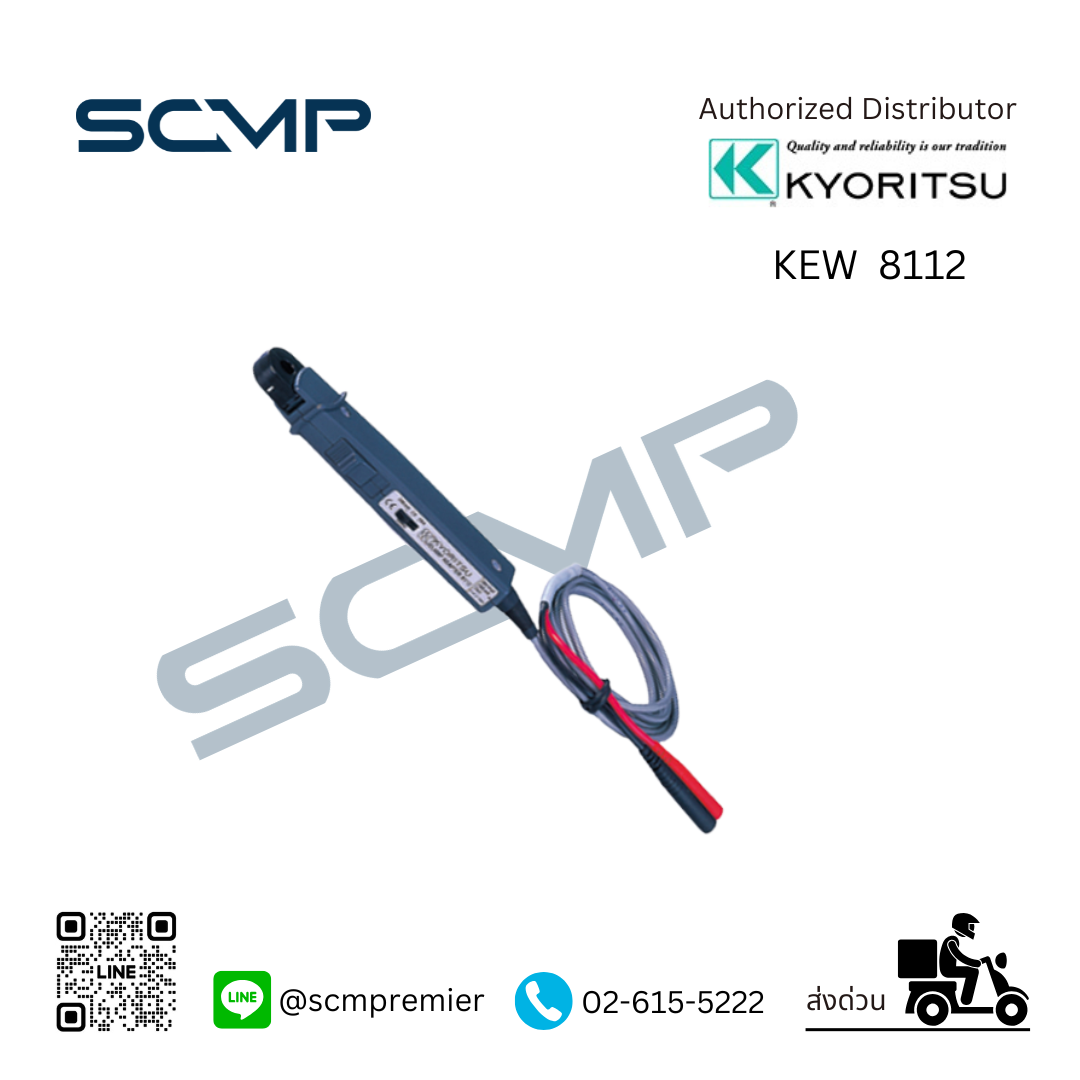

แคล้มป์เซนเซอร์ KEW 8112 AC 120A
฿11,400.00
มีสินค้าอยู่ 1
[wcboost_compare_button]
Specification
| Range | Measuring Ranges | Output Voltage | Accuracy | Frequency Response |
|---|---|---|---|---|
| 200mA | AC 0 to 500mA | AC1V/A (1000mA→1V) | ±1.5%rdg±0.2mA | 50Hz to 1kHz |
| AC 0 to 1000mA | ±3%rdg±0.4mA | 40Hz to 10kHz | ||
| 2A | AC 0 to 20A | AC100mV/A (20A→2V) | ±1%rdg±1mA | 40Hz to 1kHz |
| ±1.5%rdg±2mA | 1 to 10kHz | |||
| 20A | AC 0 to 20A | AC10mV/A (120A→1.2V) | ±1%rdg±0.01A | 40Hz to 1kHz |
| AC 20 to 60A | ±2.5%rdg | 50Hz to 10kHz | ||
| AC 60 to 120A | ±2.5%rdg | 100Hz to 10kHz | ||
| Conductor Size | Ø8mm max. | |||
| Frequency Characteristics | 30Hz to 100kHz (-3dB) | |||
| Safety Standard | IEC 61010-1 CAT II 100V Pollution Degree 2 | |||
| Withstand Voltage | 500V AC for 1 minute | |||
| Dimension | 153(L) × 18(W) × 23(D)mm | |||
| Weight | Approx. 100g | |||
| Accessories | 9095 (Carrying Case) Instruction Manual | |||
ข้อมูลเพิ่มเติม
| น้ำหนัก | 0.5 กก. |
|---|---|
| ขนาด | 15 × 15 × 10 เซนติเมตร |
